Description

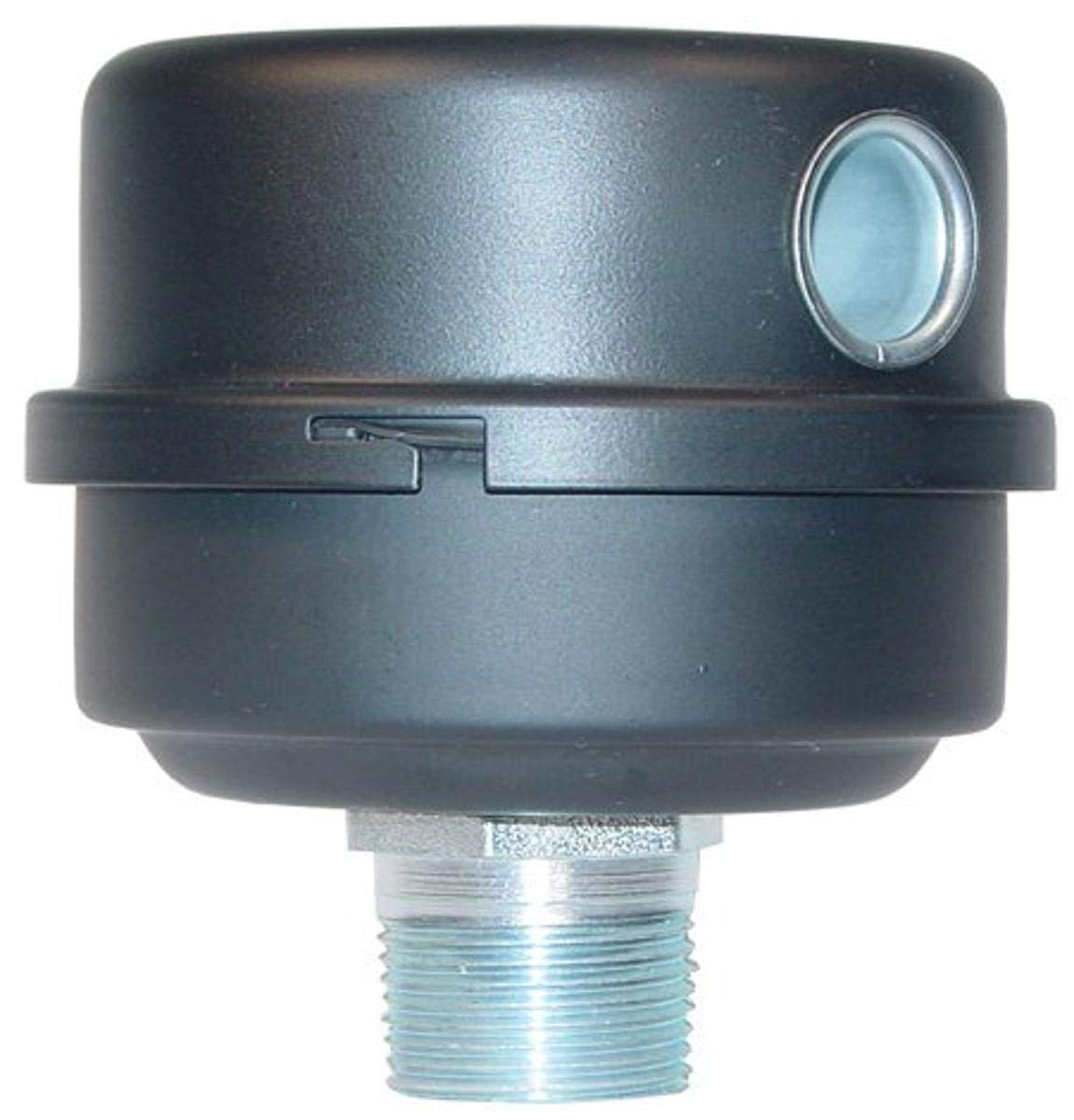

Stamped Steel Filter Silencers – FS Series
Features:
■ High grade filter element with integrated gasket seal
■ Fully drawn weatherhood
■ Tubular silencing design: tube maximizes attenuation and air flow while minimizing pressure drop
■ Corrosive resistant black powder coat carbon steel
■ Ability to mount vertically and horizontally
Technical Specifications:
■ Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
■ Filter change out differential: 15-20” H2O over initial ΔP
■ Polyester: 99%+ removal efficiency standard to 10 micron
■ Paper: 99%+ removal efficiency standard to 2 micron
■ Pressure drop graphs available upon request
Options:
■ Various media for different environments
■ Straight through configuration
■ Various nonstandard finishes and connection styles
